A teaching technique for dental surveying to accurately orient multiple casts to a pre-determined path of insertion

Beaumont & Smith, Author Details

This article describes a teaching technique for dental surveying that allows multiple students to accurately and quickly orient casts to a pre-determined path of insertion.

Teaching the practical aspects of introductory dental surveying to multiple students simultaneously presents several challenges.  One of these challenges is to enable all of the students to duplicate the position of a dental cast to a pre-determined path of insertion, assuring that they are presented with the same initial relationships of guide planes to the heights of contour for retention and reciprocation.

The dental cast to be used is prepared beforehand by making widely spaced tripod marks on the lingual or palatal surfaces in a standard fashion1.  Multiple templates may be made quickly with clear vacuform materials (Sof-Tray Sheets 5Óx 5Ó 0.9mm Ultradent, South Jordan, UT).

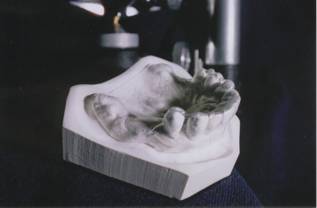

Figure 1.  Note the outline of a vacuform template trimmed to cover teeth and tissues.

Once trimmed, the template is replaced on the cast, and scribed directly over the pre-existing tripod marks

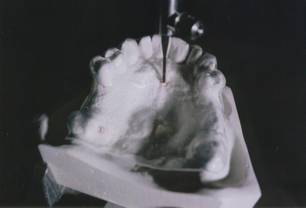

Figure 2.  The template is scribed over the pre-existing tripod marks.





The template may then be removed from the cast and perforated at each of the three scribe marks.  A small round bur works nicely for this purpose.At the beginning of the dental survey exercise, students are instructed to position the template on their unsurveyed dental casts, and to place a small pencil mark onto the cast through each of the three perforations.

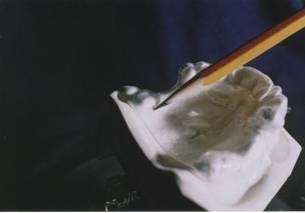

Figure 3.  The student uses the perforations to make tripod marks on the cast so that it may be oriented to the original path of insertion.



The resulting tripod marks allow the student to orient the cast to the dental surveyor with the same path of insertion as that of the original dental cast.

References

1.      Phoenix RD, Cagna DR, DeFreest CF. Stewart's Clinical Removable Partial Prosthodontics. 3rd ed. Chicago: Quintessence Publishing Co Inc; 2003. p. 231.
